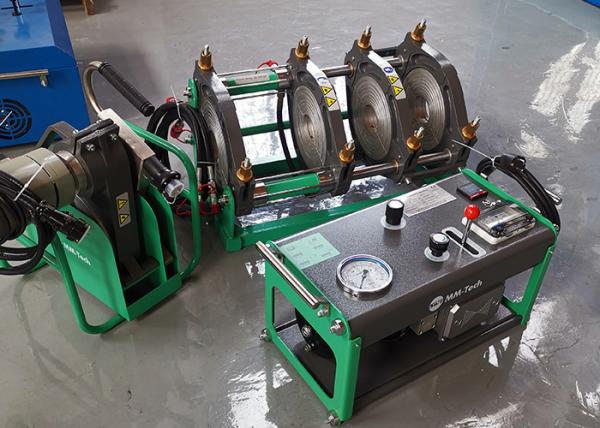

Polyethylene Butt Fusion Welder Jointing 90mm - 315mm Pipe And Fittings

Name: Polyethylene Butt Fusion Welder Jointing 90mm 315mm Pipe And Fittings
Brand: MM-TECH
Price: 3 USD

China Polyethylene Butt Fusion Welder Jointing 90mm - 315mm Pipe And Fittings factory

Brand Name : MM-TECH

Model Number : SWT-V315/90H

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : US$3,000.00 - US$3,200.00/set

Payment Terms : T/T, Western Union, PayPal, Credit Card

Supply Ability : 500 sets per month

Delivery Time : Within 7 days

Packaging Details : 3 Plywood Cases

Product name : HDPE Pipe Butt Fusion Welding Machine

Weldabe Diameters : 90mm - 315mm

Voltage : 220V

Frequency : 50Hz

Rated power : 5.25KW

Piston Area : 20.02cm²

Net Weight : 189kg

Temperature Display : Support

Moveable Timer : Support

Recommended Generator : 8KW

Contact Now

HDPE Pipe Butt Fusion Welding Machine Field Conditions

The field conditions under which PE pipe is welded have a considerable effect on the strength of the joint. In order to achieve an acceptable weld three elements are essential:

Cleanliness: because contamination will ruin joints
Technique: Most owners of PE pipe systems require that people performing butt welding of PE pipes are qualified by completing a recognized training course.
Correctly designed equipment with proper maintenance: Correct welding temperatures, welding procedures and pipe facing tools must be maintained in tolerance and in good condition.

The resulting joint, if it has been properly made, is as strong as the original pipe and can withstand all the loads applied during routine installation and operation.

During the fusion process internal and external ‘weld beads’ are formed. Techniques have been developed to minimize the size of the beads, however as they do not add anything to the overall strength they may be safely removed if required. The removed weld beads can be inspected as part of a quality control programme.

HDPE Pipe Butt Fusion Welding Machine Technical Data

Product name	HDPE Pipe Butt Fusion Welding Machine
Weldabe Diameters	90mm - 315mm
Voltage	220V
Frequency	50Hz
Rated power	5.25KW
Piston Area	20.02cm²
Net Weight	189kg
Temperature Display	Support
Moveable Timer	Support
Recommended Generator	8KW

HDPE Pipe Butt Fusion Welding Machine Application

Polyethylene Butt Fusion Welder Jointing 90mm - 315mm Pipe And Fittings
