Prisma125 Socket Welding Machine Ppr Pipe Hot Melt Fusion Bench

Name: Prisma125 Socket Welding Machine Ppr Pipe Hot Melt Fusion Bench
Brand: MM-Tech
Price: 1 USD

China Prisma125 Socket Welding Machine Ppr Pipe Hot Melt Fusion Bench factory

Brand Name : MM-Tech

Model Number : Prisma125

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 10 sets

Delivery Time : 5-8 work days

Packaging Details : Fumigation Wooden Box

Model : TSC-125

Shipping Method : Courier, sea/ air freight

Package : Wooden Carton

Rated Voltage : 220VAC/50HZ

Materials : PE/PP/PVDF

Working Range : 20-125mm

Sea Port : Shanghai

Customized : Support

NW/GW : 40/60kg

Original : China

Contact Now

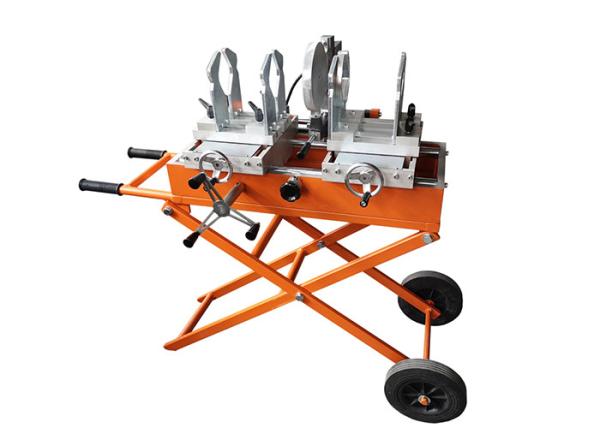

Prisma125 PPR Pipe Hot Melt Fusion Bench Socket Welding Machine

Table Socket Fusion Welding Machine Presentation:

PRISMA 125 this workshop/construction site welding machine is suitable for the socket fusion of pipes and fittings up to an OD of 125 mm (¾” to 4”), in accordance with the standards in force. And it is available in two versions, depending on the type of sockets & spigots supplied: PRISMA 125 type A and PRISMA 125 type B.

Table Socket Fusion Welding Machine Specification:

Model	Prisma125	Prisma160
Working tempera- ture	180-280℃	180-280℃
Materials	HDPE/PP-R/PPH/PB/PVDF
Rated voltage	220VAC-50/60HZ
Rated power	1400w	200ow
Working range	25-125mm	75-160mm
Dimensions machine working	15008401260	16009001100
Transport case wood	15008001300	16009201150
Weight prisma only	68-100kg	78-110kg
Weight case wood	53kg	60kg

Standard Composition:

1. Machine body complete with an electronic socket welder
2. Steel case complete with sockets and spigots from Ø 25 to Ø 125 mm and tool kit
3. Pipe support tripod
4. Sliding trolley

Prisma125 Socket Welding Machine Ppr Pipe Hot Melt Fusion Bench

Die Head Size:

20,25,32,40,50,75,63,90,110,125 sockets and spigots

Prisma125 Socket Welding Machine Ppr Pipe Hot Melt Fusion Bench

Service:

1. Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.

2. 24-hour online customer service to solve after-sales problems, professional engineer guidance + video teaching

Prisma125 Socket Welding Machine Ppr Pipe Hot Melt Fusion Bench
